TANG.IT 1000

CNC pantograph – Oscillating Beltblade
Tang-It-1000-(1)
CNC pantograph – Oscillating Beltblade

TANG IT 1000 allows to cut with no help particular tools’ help, it consists of a cutting device with OSCILLATING beltbalde in order to make the cut easier.
Different blades allow you to work various thicknesses and therefore many materials.
This solution , with its small size, allows you to easily work the leather, leather, carpet, fabric, fabrics coupled with a CAD’s design directly imported into the machine.
ASK FOR A QUOTE
WHAT THE TANG.IT 1000 CAN DO

It is an extremely versatile machine, it can be used on a wide assortment of materials such as:
– CLOTH
– CARPET FOR DOORMATS
– LEATHER FOR FOOTWEAR, BAGS, OBJECTS
– CARDBOARD OF VARIOUS THICKNESSES FOR THE REALIZATION OF EXHIBITORS
– GASKET RUBBER
– POLYSTYRENE FOR DECORATIONS OF ALL KINDS
– STATIONERY CARD
– METAL WITH A MAXIMUM THICKNESS OF 0.15 MM
– SPONGES OF GOOD CONSISTENCY
– SEMI-STRAIGHT AND EXPANDED MATERIALS

Cutting cloth with Tangential Blade cnc - Pantographs

Cutting fabrics with oscillating blade - cnc Pantographs

Why I purchased the Pantograph Taglio Lama cnc TANG IT - SIRIO articoli tecnici

PROCESSED MATERIALS

CLOTH, LEATHER, LEATHER, DOORMAT CARPET, CARDBOARD, RUBBER, POLYSTYRENE, SPONGES.
tangit1000_350x350_singola2
tangit1000_350x350_singola
tang it pantografi amma
tang it pantografi amma
tang it pantografi amma
OSCILLATING TANGENTIAL BLADE

The oscillating tangential blade is very similar to the cutter’s one. thanks to a high-frequency motor, allows to generate vibrations and rotations in order to cut any materials and therefore creating fantastic processes.

There are Blades of different lengths; replacing the blade it is possible to work materials of various thicknesses, until 120 mm.

The software also allows you to cut shapes where the press is provided, all along the edge with high precision.
tang it pantografi amma
AXLE’S MECHANICS AND HANDLING

• Made with electro-ized heavy carpentry, aluminum beam “X” (light material in order to speed up all the movements).
• Made in Italy electronics with professional control software.
• Excellent quality mechanics with rack handling that guarantees faster movements up to 20,000 mm/min
• Recirculation guides of professional spheres
• Possibility of mounting protective bellows on all axes
WORK PLAN

The work top is practical and durable, the standard one in wood, aluminum or suction throughout the area, depending on the choosed machine’s configuration. It is customizable, TAILOR-MADE and with SPECIFICATIONS by the customer in oreder to meet every need.

Available workspace:
• 1000x1000x (100 mm Z-axis) • 1000x2000x (100 mm Z-axis)
• 1700x1700x (100 mm Z-axis) • 1250x2500x (100 mm Z-axis)
• 1500x3000x (100 mm Z-axis) • 2000x3000x (100 mm Z-axis)
TANG_IT1000_img03
TANG_IT1000_img02
MONOLITHIC STEEL STRUCTURE

Our machines are painted with two-component polyurethane paint that guarantees an excellent wear resistance and therefore a longer service life.

PROTECTIONS WITH DUST SCREEN CARTER ON THE AXLES

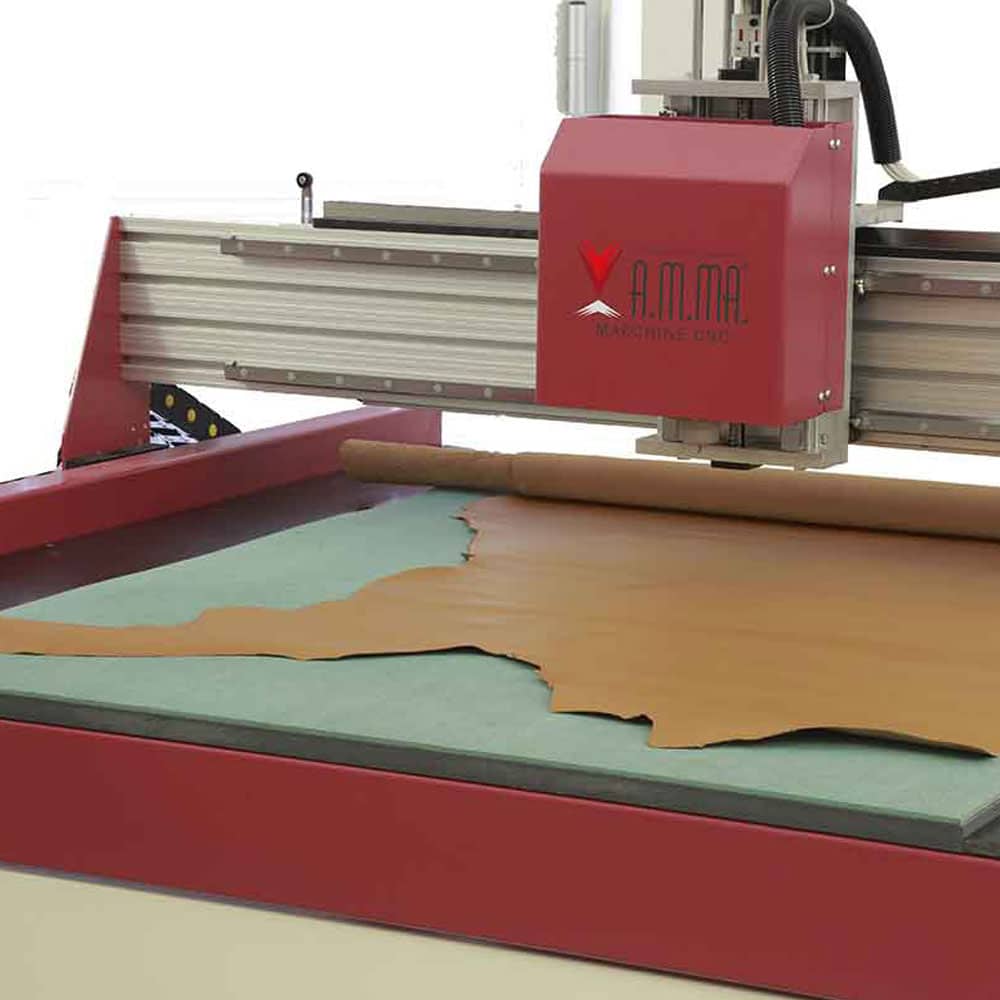

TANG_IT1000_img05
TANG_IT1000_img01
TECH SPECS
• USEFUL PROCESSING PLAN: 1000×1000 – 1000×2000 – 1700×1700 – 1250×2500 – 1500×3000 – 2000×3000 1700×3700
• MACHINE MATERIALS: REINFORCED ALUMINUM AND STEEL STRUCTURE
• AXIS HANDLING: BALL AND RACK RECIRCULATION
• Z-AXIS STROKE: 100 mm
• WORK TOP: ASPIRING OVER THE WHOLE AREA
• TANGENTIAL BLADE DEVICE: HIGH CUTTING SPEED – BLADE PORTAL UP TO 1.0 – BLADE STROKE 8 MM
• CONTROL ELECTRONICS: PROFESSIONAL MADE IN ITALY FOR THE MANAGEMENT OF AXLE HANDLING
• SOFTWARE: YOU CAN IMPORT VECTOR FILES OF TYPE: AI, DXF, EPS, AND THREE-DIMENSIONAL FILES SUCH AS . STL and 3DM
• WORKABLE MATERIALS: CARDBOARD, CARPET FOR DOORMATS, RUBBER, LEATHER, POLYSTYRENE, SPONGES, STEEL WITH THICKNESSES 0.15 MM – CUTTING HARD, THIN AND SOFT MATERIALS – MULTIPLE FIELDS OF APPLICATION – PACKAGING, FABRICS, COMPOSITES, FOAMS, GRAPHICS, PACKAGING, SPECIAL MATERIALS, ETC.
OPTIONAL AVAILABLE

– Aspirated plane over the entire workspace

– mark’s reader, for reference of the cutting sheet

– Projector/camera, for fast and secure cutting setting

– Laser for small cuts and engravings

– Laser Scanner for 3D surveys acquisition



(IN according to the materials to be worked)
